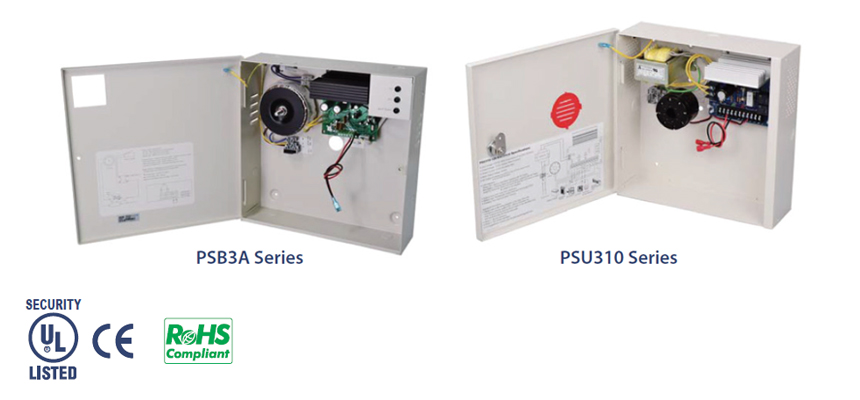

PSB/PSU Series

Linear Power Supplies with High Performance Toroidal Transformer

The MEC family of PSB/PSU series linear power supplies is specifically designed to support electrified locks and access control systems. The PSB series is equipped with a toroidal transformer that features low operating temperature and high electrical efficiency. The PSU200 is recommended for use with a wide range of access control devices. The PSU310/320/510 series is a multi-functional controller ideal for use where an interface with a fire alarm system is needed. The PSU510 series complies with EN60950-1 and is certified with CE, EMC, L VD, and FCC standards.

Standard Features
• Filtered & regulated DC output
• Sealed lead acid- gel battery charging capability (Battery is not included)
• LED indicators (For AC/DC/Power/Battery status)
• Built-in tamper switch (For PSB series)
• Toroidal transformer (For PSU-2A12V-230, PSB Series)
• Red flashing light & buzzer alarm (For PSU310/320 series)
• Field selectable 12 or 24 VDC (For PSU510 series)
• Adjustable timer (For PSU200/510 series)
• Emergency override input (For PSU310/320/510 series)

Protection
• Low battery voltage protection (For PSB series, PSU320, PSU2A-12V-230)
• DC short circuit protection
• Reverse battery protection
• AC & DC overcurrent protection
• DC thermal overload protection

Patents, Approvals, and Listings
• UL listed: E229191 (For PSU100-UL)
• CE-LVD: L3D1420L636 (For PSU510)
• CE-EMC/FCC: EC3D1420 (For PSU510)

Downloads PDF
Add to Cart (Selected Items)

Power Supply
  • PSB/PSU Series

    Linear Power Supplies with High Performance Toroidal Transformer

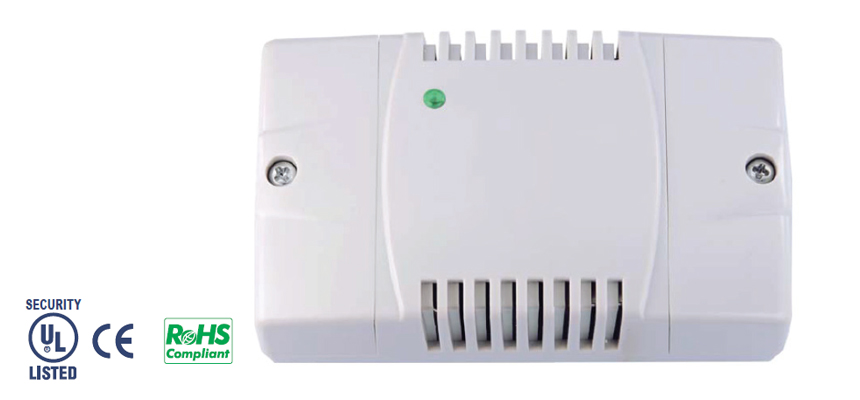

  • PSM Series
