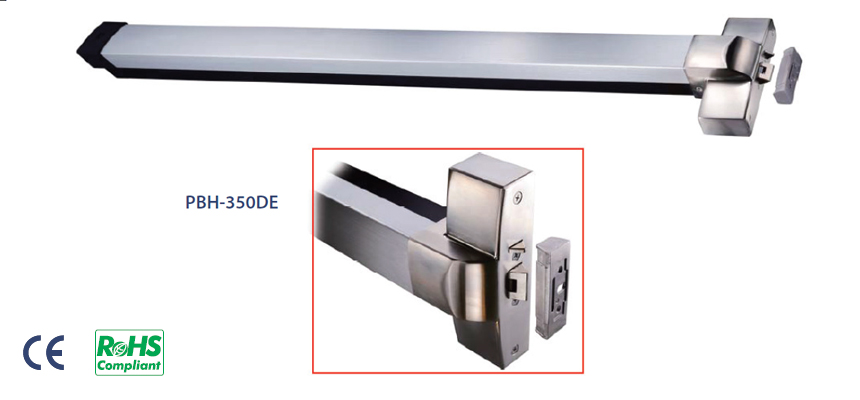

The PBH-350DE Delayed Egress Electromechanical Push Bar is designed for use on emergency exit doors. The built-in electrified lock is designed with its high preload capability that allows smooth operation even under varying loads on the door, such as air -conditioning pressure, changes in the weather, warped doors or doors with weather stripping. It is specially designed for door openings that require delayed egress where you may already have a standard magnetic lock installed.
Standard Functions
• Field selectable nuisance delay
• Field selectable 15 or 30 second exit delay
• Emergency signal input
• Key reset
• Door ajar input
Speci cations
• Operating voltage 12 or 24 VDC
• Built-in 95db piezo buzzer
• Static strength 1,500 lbs (680Kg)
• Up to 500 lbs (227Kg) of preload
• Fail-safe mode
New Concept of Push to Exit Device
Mechanical Release for Safety and Reliability
